The Ultimate Buyer's Guide to SMT Turnkey Solutions

Investing in a Surface Mount Technology (SMT) production line is a critical decision for any electronics manufacturer. Whether you are setting up a new EMS factory SMT line or upgrading an existing high-mix electronics manufacturing line, choosing the right SMT turnkey solution directly impacts your productivity, quality, and bottom line. This comprehensive guide, powered by the expertise of Motek, a trusted name with over 15 years in the SMT industry, will walk you through the essential considerations, key equipment, and strategic questions to ask before making your investment.

Step 1: Define Your Production Requirements

Your production needs are the foundation of your equipment selection. Clearly answer these questions:

• Board Volume & Mix: Are you running high-volume, low-mix or high-mix electronics manufacturing line with frequent changeovers?
• Component Types: Do you handle micro BGAs, 01005 chips, or odd-form components? This dictates the need for advanced pick and place machine capabilities and X-ray BGA inspection machine.
• PCB Specifications: Size, thickness, and material (flexible, rigid-flex) influence choices for conveyors like the SMT buffer conveyor and PCB depaneling router.
• Quality Standards: Medical, automotive, or aerospace? These demand rigorous inspection with AOI automatic optical inspection and Inline SPI inspection machine.

Step 2: Core Equipment Deep Dive – The Heart of Your SMT Line

Each machine in the line plays a vital role. Here’s what to look for in key equipment:

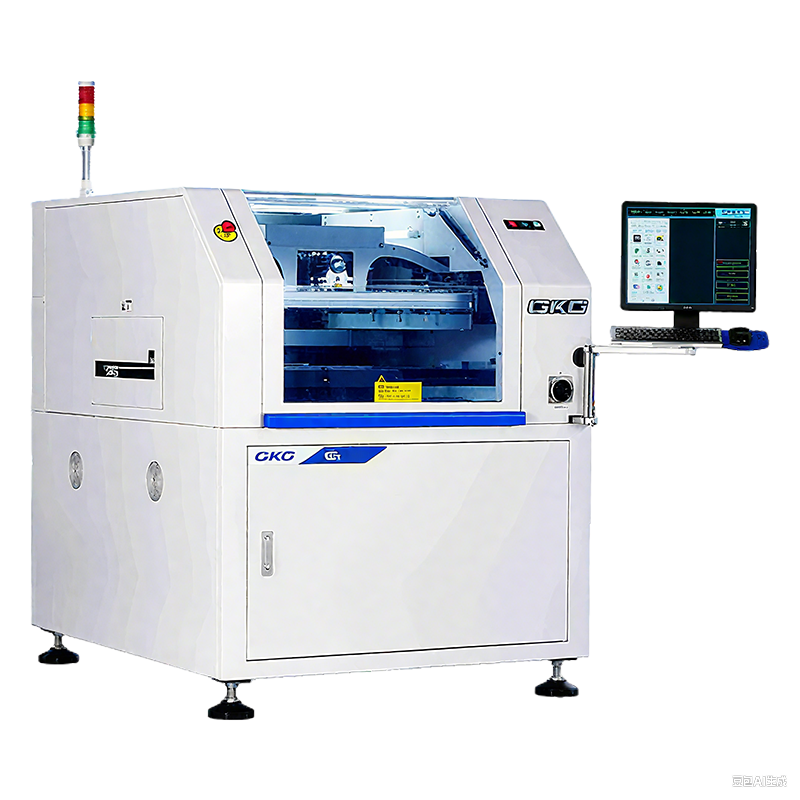

1. Solder Paste Printer

The first critical process. Look for models with vision alignment, automatic stencil cleaning (consider a dedicated stencil cleaning machine for high-volume lines), and consistent pressure control. Poor printing leads to defects that are costly to rework later.

2. Pick and Place Machine

This is your line's workhorse. Your choice depends on speed, accuracy, and flexibility.

• High-Speed & Flexibility: Consider the Yamaha SMT mounter YSM series for a balance of speed and component range.
• Cost-Effective Reliability: The JUKI pick and place machine is renowned for stability in diverse production environments.
• Ultra-High Speed for Specific Platforms: The Fuji NXT SMT solution offers modular, scalable speed for large-scale production.

3. Reflow Oven & Inspection

The SMT reflow oven must have a stable, controllable thermal profile for your specific solder pastes. Following reflow, a closed-loop inspection system is non-negotiable for modern quality control:

• Inline SPI inspection machine: Checks solder paste volume and alignment before placement, preventing defects at the source.
• AOI automatic optical inspection: Post-reflow inspection for component presence, polarity, and solder joint quality.

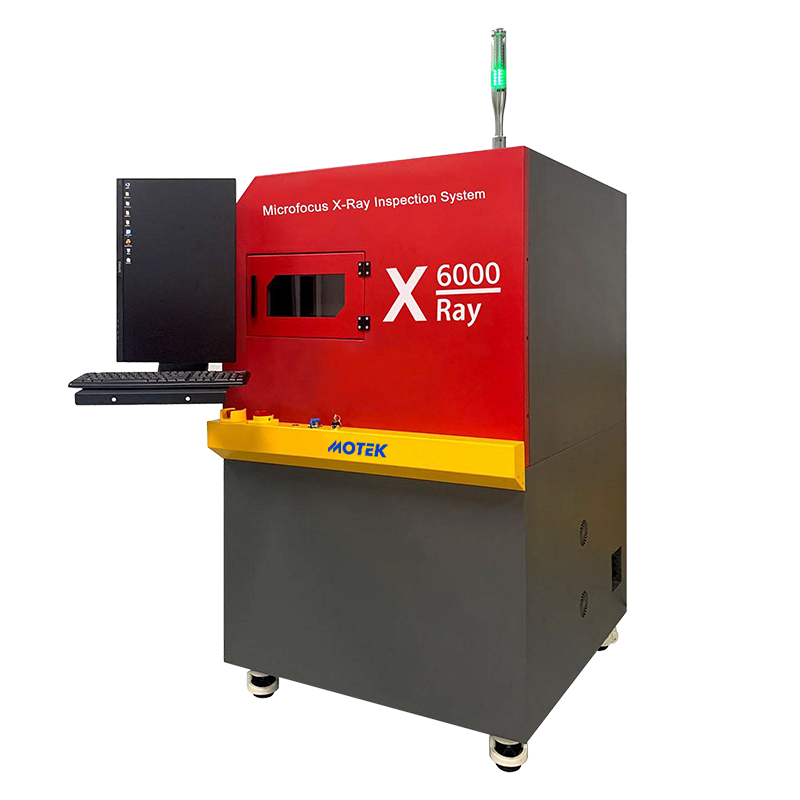

• X-ray BGA inspection machine: Essential for hidden solder joints under BGAs, CSPs, and for void analysis in critical applications.

Step 3: Evaluate the Solution Provider – Beyond the Machines

The provider's expertise is as important as the equipment. Here’s why Motek stands out as a reliable partner:

• Comprehensive Portfolio: From PCB loader unloader and SMT buffer conveyor to PCBA cleaning machine and PCB depaneling router, Motek offers a complete ecosystem.
• Deep Industry Knowledge: With 15+ years of evolution from accessories to full solutions, Motek understands SMT production troubleshooting from the ground up. "We listen to our customers, so as to understand their needs!" is their core philosophy.
• Proven Credibility: Certifications like ISO 9001:2015 and the Verified Supplier Certificate attest to their commitment to quality and reliability. Motek, a Name you can trust!

Step 4: Total Cost of Ownership (TCO) & Support Services

Look beyond the initial price tag. A reputable provider will help you analyze TCO, which includes:

• Uptime & Efficiency: Can they offer SMT line optimization service to maximize your Overall Equipment Effectiveness (OEE)?
• Consumables & Spare Parts: Availability of SMT nozzle replacement for Fuji Yamaha JUKI and feeders is critical for maintenance.
• Training & Technical Support: Ensure they provide thorough operator and technician training to minimize SMT production troubleshooting time.
• Warranty & After-sales: A strong warranty and responsive support network prevent prolonged production halts.

By meticulously following this guide and partnering with an experienced provider like Motek, you can implement a robust, efficient, and future-ready SMT turnkey solution that drives the success of your EMS factory SMT line and meets the challenges of modern high-mix electronics manufacturing line demands.
